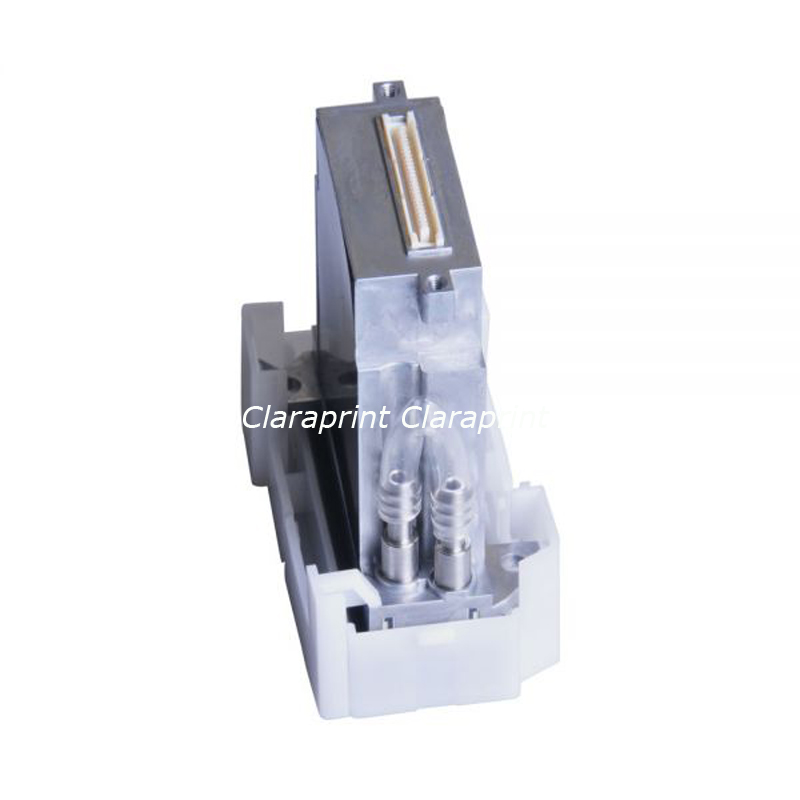

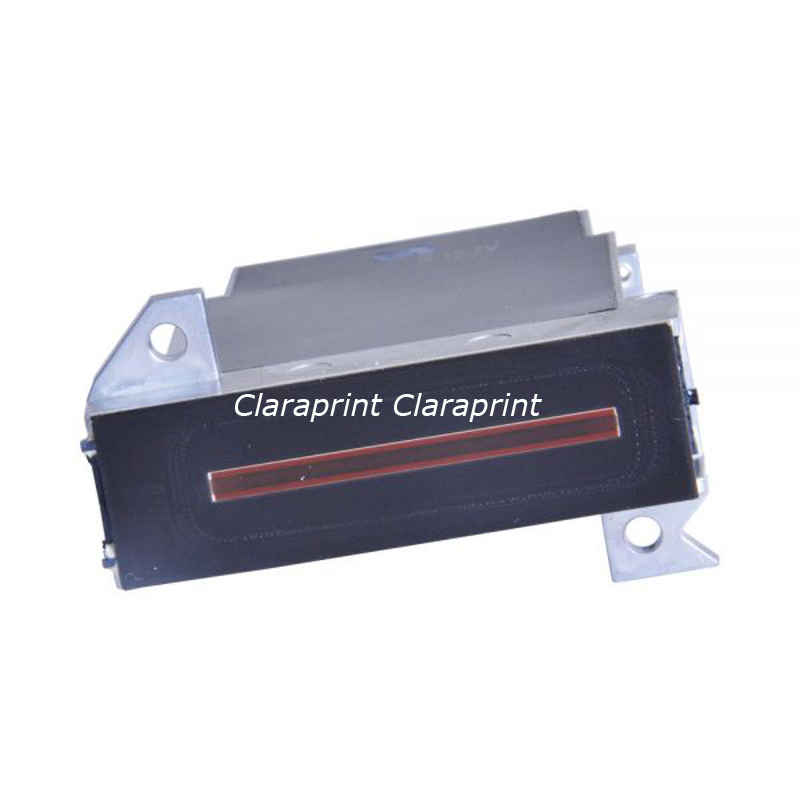

Original Konica Minolta KM512 MHX 14PL UV Printhead for Oil Based Solvent & UV Inkjet Printer

The Konica KM512MH printhead is a robust, shear mode, piezo on-demand Print Head that is usable in both binary and 4 level greyscale mode, providing variable drop size and higher print quality without the use of additional print heads.The Konica KM512MH printhead has 512 nozzles with a droplet size of 14pl and a nozzle resolution of 360 dpi. It has an integrated heater, which makes it ideal for oil based and UV inks, but it works with Solvent Ink as well. The heater can be heated up to 55°C. This print head is also known as the Konica Minolta KM512 MHX. This is Konica original print head and it includes the Head ID and the necessary waveform information.

Specifications:

Technology: On-Demand Piezo Electric

Native Resolution: 360 dpi

Cal. Droplet Size: 14 pico litre

Max. Drops in Greyscale: 3 drops

Tot. Amount of Nozzles: 512 (256 nozzles per line)

Nozzle Spacing: 70.5 microns

Print Width: 36.1 mm

Firing Frequency: 12.8 kHz

Ink Compatibility: Oil Based, Solvent and UV Inks

Heater: integrated

Suitable for:  Oil Based, Solvent and UV Inkjet Printer.
